Thatch Fire Barrier - PU28
Thatch Fire Barrier - PU28
When a thatched roof is stripped down to rafters, or on 'new build', the recommendation is the installation of PU28 Thatch Fire Barrier.
Description
PU 28 is a medium weight fiber glass fabric with a specially
formulated aluminum pigmented and fire retardant polymer which provides
a heat reflecting surface as well as other properties for the
manufacturing of smoke and fire curtains, blinds, cavity wall fire
barriers and other types of smoke and fire control systems. As opposed
to a rigid fire-board, the material is flexible and will follow the
contours of an old roof structure. The material is halogen free, has an
improved resistance to hydrolysis (waterproof & breathable) and
offers a more rigid handle, it will not rip easily.
With a Class 0 fire resistance rating and satisfying BS 476 Part 6:
1989, Part 7 1997, it is acceptable, where required, for Building
Regulations.
As an incentive to use this product, 'Thatch Fire Barrier' is, for a limited time,
offering to supply this to thatchers, builders, or individual home-owners, at
a very reduced rate.
1.3m x 50m - £500.00 per roll + haulage. There
is no VAT to add on to this price, which makes it of great interest to
non VAT registered thatchers, builders and home-owners.
This product and website is recommended and endorsed by, amongst others, www.thatch.net
, www.eamta.co.uk , www.dmthatching.co.uk
, www.thatchingandbuilding.co.uk
.
For further information and to order, please click contact.
The PU28 thatch fire barrier fabric is fixed on top of the rafters.
Strips can be laid vertically, to overlap & secure on a rafter,
to create a total fire seal, or can be laid horizontally. If the strips
are laid horizontally, it is essential to create a total fire seal and
have no sagging between the rafters.

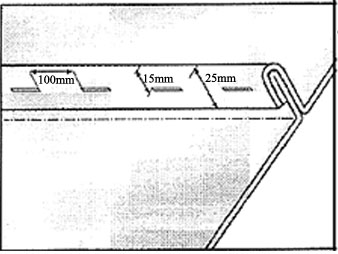

Lay the fabric with a 100mm overlap, fold back to give a 50mm up stand -
Staple this together with 8mm staples at 500mm spacing. The join is then
folded back on itself 25mm to give a continuous seal.
This fold then has a second run of staples at 100mm spacing to create
the total fire seal.

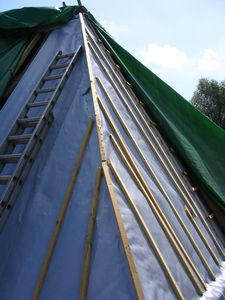

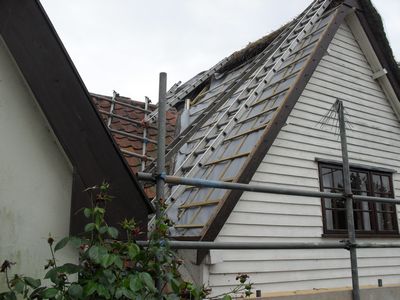

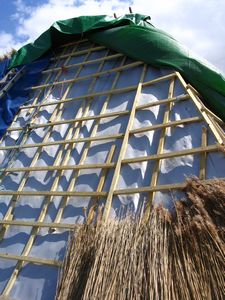

As the thatching requires the ability to
fix into the rafters, a counter batten is then fixed to the vertical
line of each rafter. By then fixing horizontal battens, an air gap
,beneath the thatch, of about 50 mm is created.
PRODUCT
DATA SHEET
Style:
410g Double Sided PU Coated
Product
Description: Woven
Glassfibre coated both sides with PU (Grey) at 20g/m² per side
Weave:
Satin
Weight:
430g/m²
Thickness:
0.35mm
Total Weight:
470g/m²
Total
Thickness: 0.45mm
Standard Roll
Length: 50Lm
Standard Roll
Width: 1300mm
___________________________________________________________
Yarns:
WARP
EC9 136 TEX
WEFT
EC9 136 TEX
Count:
19/cm x 11/cm
___________________________________________________________
Thermal
Specifications: -
Max cont operating temp
450ºc - 500ºc
Finish decomposition
180ºc
___________________________________________________________
Technical Data
Base Fabric
Tolerance Test Methods
Yarn Warp EC9 -136
+ 5%
DIN EN 12654
Weft EC9 -136
Thread Count
Weft 11.0 per 1 cm
Tensile Strength
Warp 1080 N/cm
DIN EN 12654
Weft 640 N/cm
Weight
415 g/m2
+ 5%
DIN EN 12127
Weave
4 Shaft Satin
DIN ISO 9354
Coated Fabric
pigment on both sides
Weight
455 g/m2
+ 10%
DIN EN 12127
Thickness
0.40 mm
+ 10%
DIN ISO 4603/E
Tensile Strength
Warp 650 N/cm
min.
DIN ISO 4606
Weft 580 N/cm
min.
Thermal Conductivity
0.1011 W / m K
DIN 52612 1 / 2
Thermal Resistance
0.0046 m² K / W
DIN 52612 1 / 2
Temperature Resistance
-36 to 150 ° C
Tolerates 180 ° C for short periods
Glass fibre fabric maintains integrity up to 600 °C
Approvals
Class 0
BS 476 Part 6: 1989, Part 7 1997
See BG Nr. 119.122 MO Res A.653 FTP Code Annex 1, Part 2
BS 476 Part 20 & 22
Changes, that will serve the technical
performance, can be added without prior notice. This technical data is based on
our present knowledge and only for information.
